Import an image

A new plan of a building storey can be imported from an image file in PNG or JPEG format. The user can drag&drop the file in the building or level directory or opening the selection pop-up by clicking on Import plan button.

It is possible to select in the local computer one file that represents a 2D architectural plan. After selecting the file a thumbnail will be displayed in the pop-up

The user can define a new name of the plan and also add a description. Both name and description can be changed later when selecting the plan.

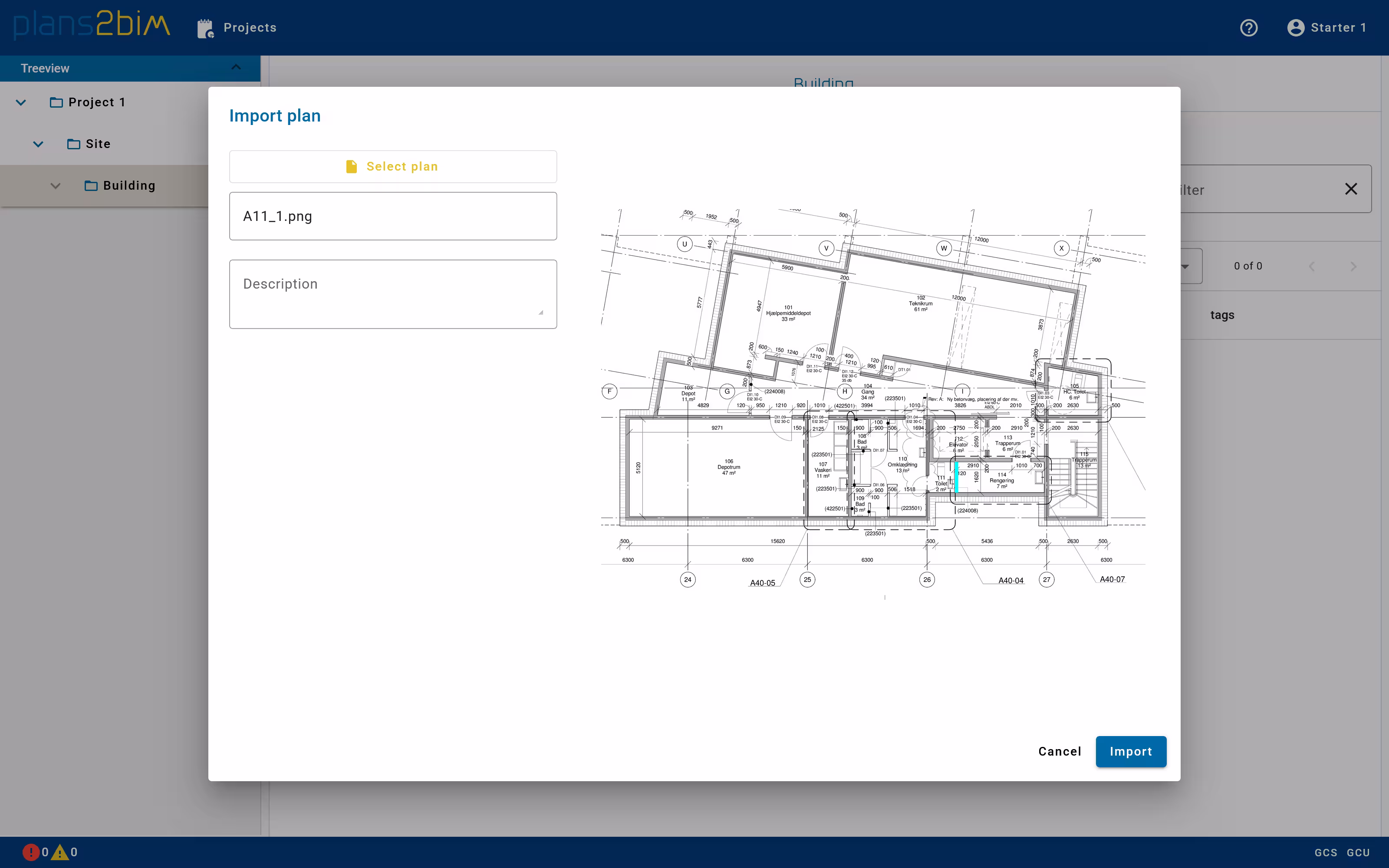

Import an image of plan
